ANSHUN MACHINERY knows what you expect from a mining project, and we are making it happen with unrivaled products and services.
Leave Message
Application Areas: Mining, smelting, building materials, road, railway, water conservancy, chemical industry, etc.;

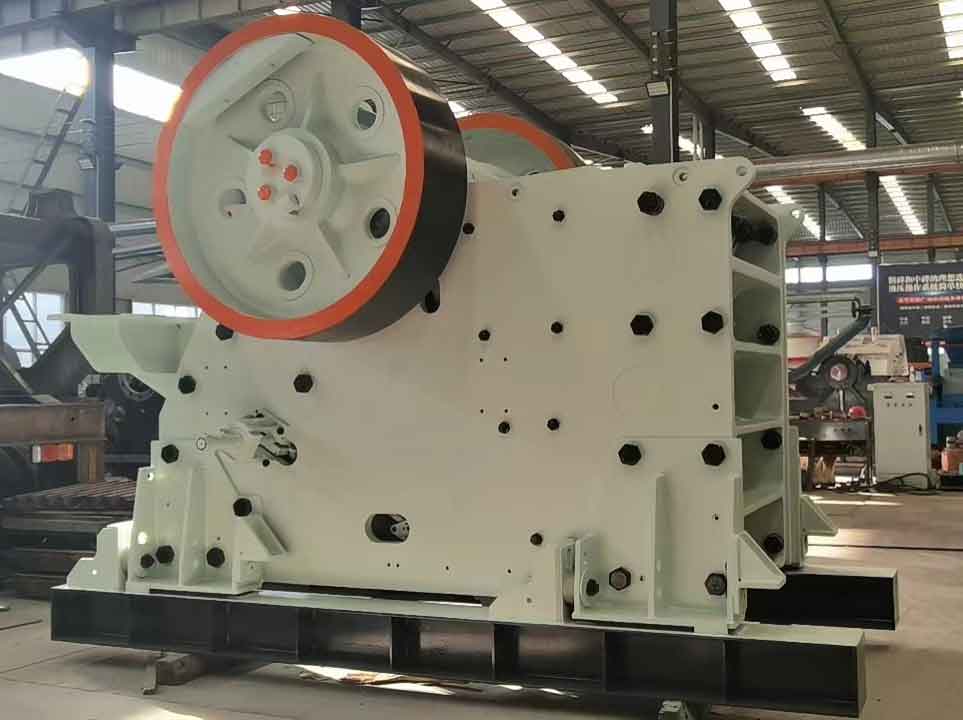

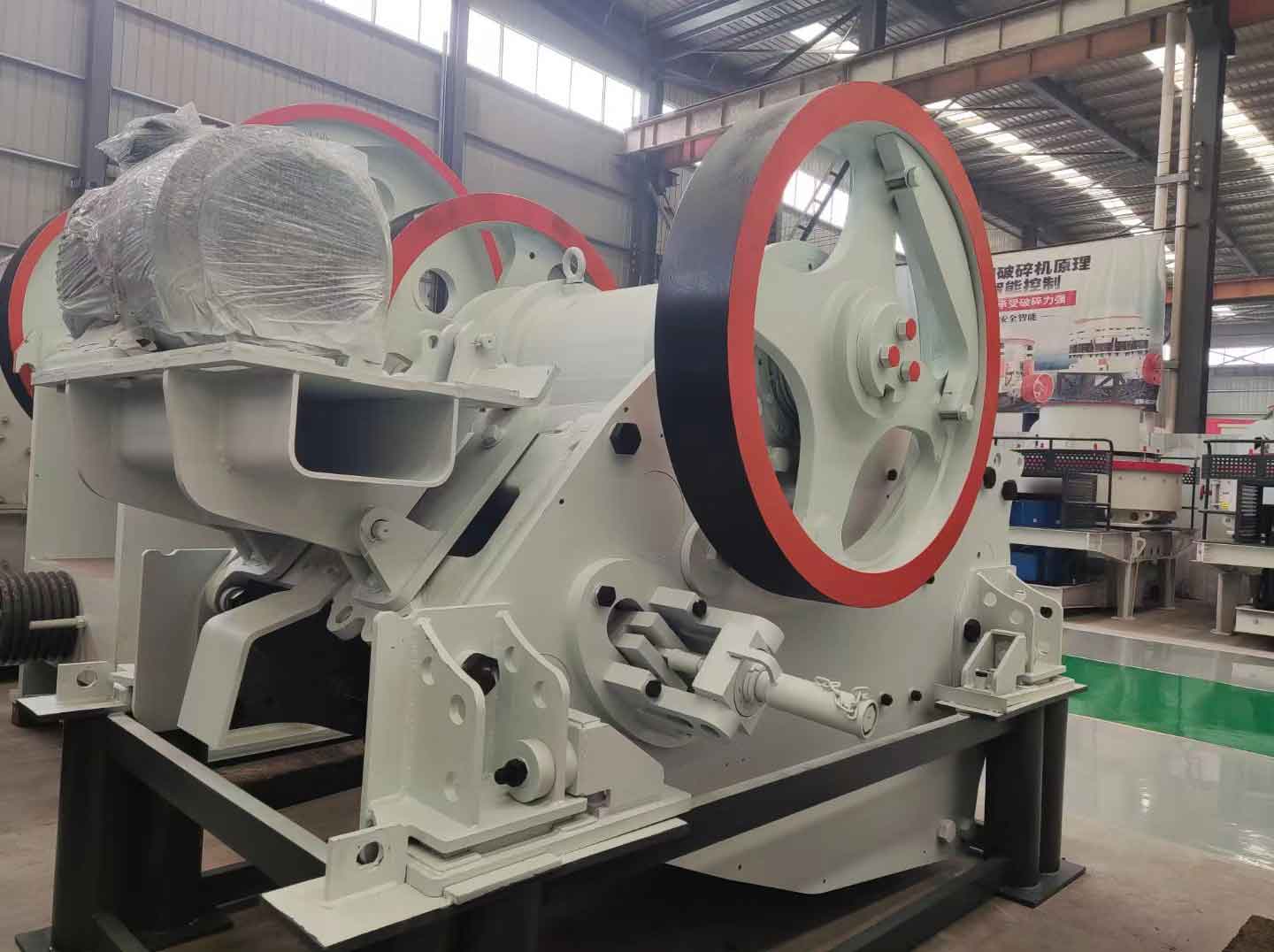

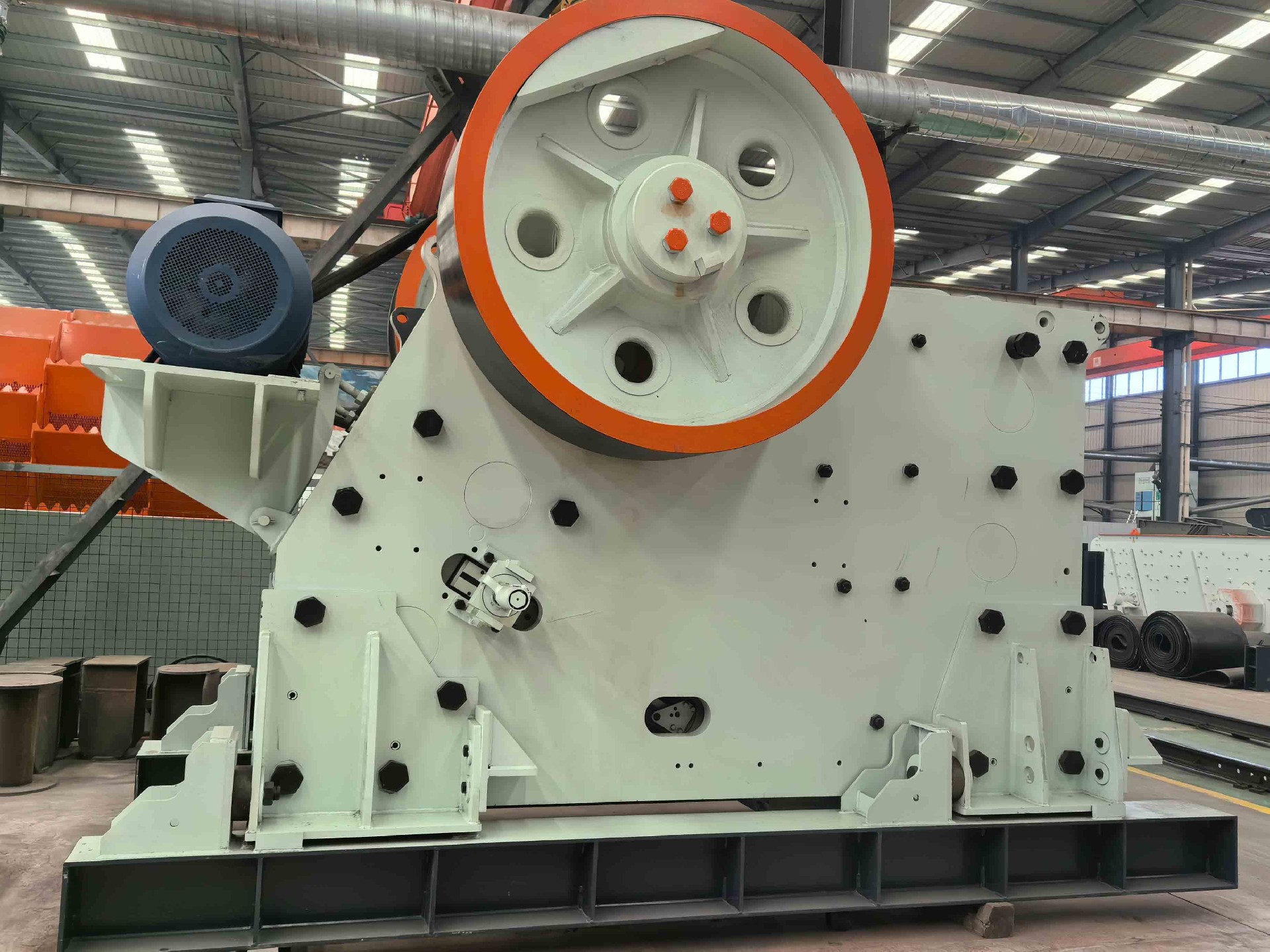

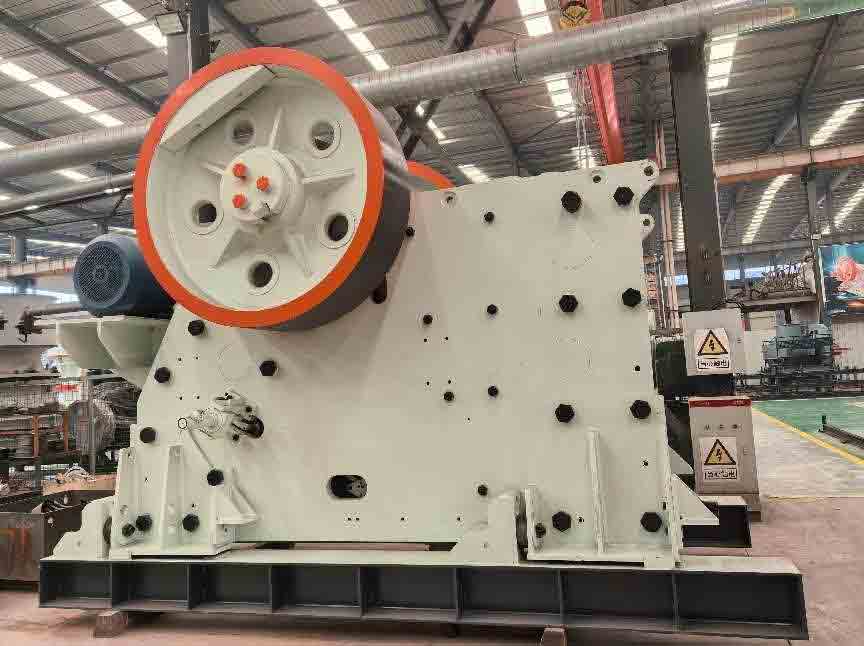

The 6CX European jaw crusher is a new-generation product successfully developed using the most advanced crushing technology and research results worldwide. It is based on decades of experience in jaw crusher design and manufacturing and uses finite element analysis methods. This series of products is at the world's advanced level.
Compared with traditional jaw crushers, the 6CX series European jaw crushers pay more attention to details in design and manufacturing. They use high-strength materials and advanced manufacturing processes and have higher structural strength, higher equipment reliability, and greater crushing efficiency. It has the advantages of a larger ratio, higher output, and lower overall processing cost.
1. Deep cavity crushing: Energy-saving optimized deep cavity crushing without dead corners greatly improved feeding capacity and crushing efficiency, 15%-30% energy savings for a single machine and more than twice the energy savings for the system.
2. Advanced technology and large crushing force. Advanced crushing technology and digital processing equipment, with precise internal structure and enhanced crushing capacity, are adopted.
3. Convenient maintenance and improved production efficiency. The equipment adopts a grease centralized lubrication system, which is safe and reliable, convenient and fast, and reduces downtime and maintenance time.
4. Green, low noise, equipped with dust removal device, reduce dust generation, reduce pollution, and strictly comply with national environmental protection standards.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

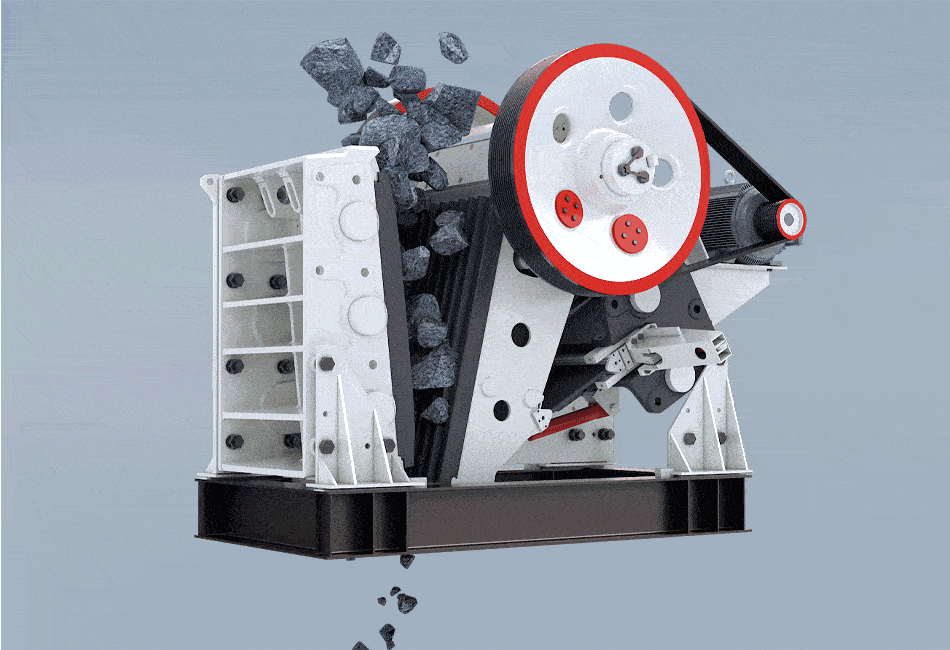

The working mode of the European jaw crusher is the bending extrusion type. Its working principle is: that the motor drives the belt and pulley to make the movable jaw move up and down through the eccentric shaft. When the movable jaw rises, the included angle between the elbow plate and the movable jaw becomes larger to push the movable jaw plate close to the fixed jaw plate. At the same time, the materials are crushed or split to achieve the purpose of crushing. When the movable jaw descends, the included angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crusher jaw makes periodic movement to crush and discharge materials to realize mass production.
Model | Size of Feed Opening(mm) | Motor Power(kW) | Speed(r/min) | Fixed jaw plate length(mm) | Max.Maintenance Weight(Kg) (Without Flywheel Moving Jaw Assembly) |
6CX80 | 800×510 | 75 | 350 | 1100 | 2870 |
6CX96 | 930×580 | 90 | 300 | 1100 | 3500 |
6CX100 | 1000×760 | 90 | 260 | 1600 | 7060 |
6CX106 | 1060×700 | 110 | 280 | 1450 | 4020 |
6CX110 | 1100×850 | 132 | 230 | 1800 | 9000 |
6CX125 | 1250×950 | 160 | 220 | 2000 | 12960 |
6CX140 | 1400×1070 | 200 | 220 | 2100 | 15950 |
6CX145 | 1400×1100 | 200 | 220 | 2300 | 18600 |
6CX160 | 1600×1200 | 250 | 220 | 2500 | 21380 |
