Application Areas: Widely used in mining, metallurgy, building materials, water conservancy and other industries in the crushing, fine crushing, ultra-fine crushing operations.
CH-type high-efficiency hydraulic cone crusher is a high-efficiency crusher designed by our company, which introduced American technology and combined the performance of international metal materials. The CS series high-efficiency spring cone crusher is used in ferrous and non-ferrous metal mineral processing. It can effectively reduce the grinding particle size of the ore and achieve more crushing and less grinding. It not only improves the mill's production capacity but also saves electricity and steel, significantly improving the economic benefits of the mining plant.
·Large production capacity and high crushing efficiency
·Laminated and broken, the product has a good grain shape
·Multiple cavity types combined with optimal stroke to adapt to various particle size requirements
·Long life liner
·Simple structure, easy maintenance, and low operating cost
·Hydraulic automatic cavity clearing and overload protection
·Fully automatic control of the production process
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

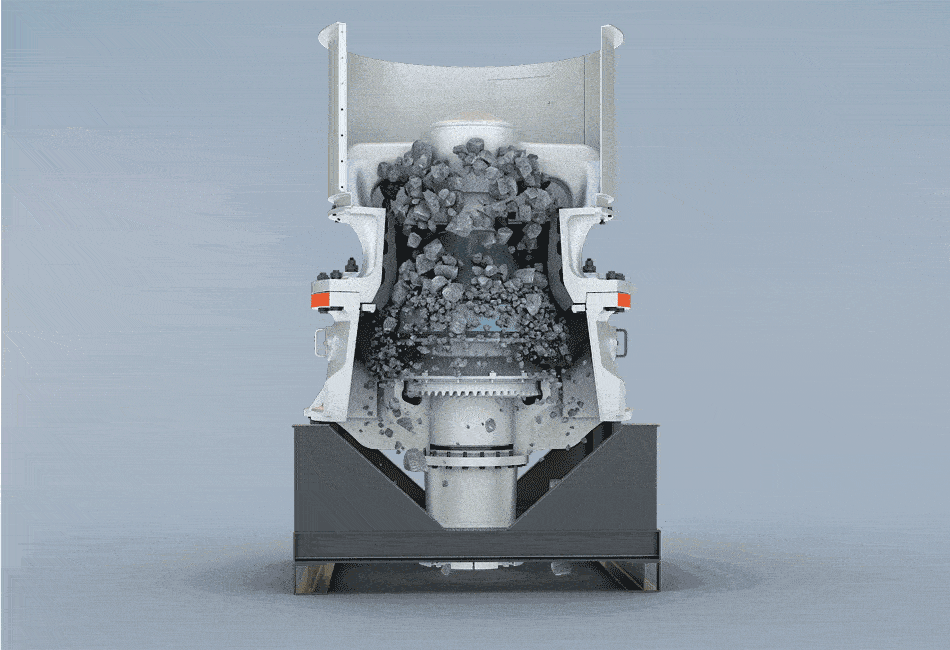

The motor drives the horizontal shaft to rotate, and the horizontal shaft drives the eccentric sleeve to rotate through the gear. Then, the eccentric sleeve drives the moving cone to swing in a circle, thereby achieving continuous extrusion and crushing of materials. By adjusting the hydraulic cylinder at the bottom of the movable cone, the movable cone can move up and down to conveniently adjust the size of the ore discharge port and the product particle size. At the same time, the hydraulic cylinder also provides an iron protection function. When an object that cannot be broken (such as an iron block) enters the crushing chamber, the hydraulic cylinder automatically drops the movable cone, releases the iron block, and protects the crusher. After the foreign matter is discharged, the movable cone automatically recovers. The equipment returned to working order and continued to shatter.
Model | Cavity | Max Feed Size(mm) | Min Discharge Port Size(mm) | Capacity(t/h) | Max Installed Power(kW) |
CS420 | S1(Extra Coarse) | 240 | 22 | 85-170 | 90 |
S2(Medium Coarse) | 200 | 19 | 70-130 | ||
CH420 | H1(Fine) | 135 | 10 | 45-130 | |
H2(Medium Fine) | 65 | 8 | 35-80 | ||
H3(Extra Fine) | 38 | 4 | 27-60 | ||
CS430 | S1(Extra Coarse) | 360 | 25 | 120-345 | 160 |
S2(Medium Coarse) | 300 | 33 | 105-305 | ||
S3(Coarse) | 235 | 19 | 90-275 | ||
CH430 | H1(Fine) | 185 | 13 | 60-210 | |
H2(Medium Fine) | 90 | 10 | 65-165 | ||
H3(Extra Fine) | 50 | 6 | 48-105 | ||
CS440 | S1(Extra Coarse) | 450 | 35 | 255-605 | 250 |
S2(Medium Coarse) | 400 | 29 | 215-515 | ||
S3(Coarse) | 300 | 25 | 190-490 | ||
CH440 | H1(Fine) | 215 | 16 | 110-395 | |
H2(Medium Fine) | 110 | 13 | 115-340 | ||
H3(Extra Fine) | 70 | 8 | 90-225 | ||
CS660 | S1(Extra Coarse) | 560 | 41 | 355-1050 | 315 |
S2(Medium Coarse) | 500 | 38 | 305-895 | ||
CH660 | H1(Fine) | 275 | 16 | 170-665 | |
H2(Medium Fine) | 135 | 16 | 190-505 | ||
H3(Extra Fine) | 65 | 13 | 205-320 | ||
CH870 | H1(Fine) | 300 | 22 | 448-1512 | 520 |
H2(Medium Fine) | 155 | 19 | 400-1372 | ||
H3(Extra Fine) | 80 | 10 | 280-775 | ||
CH890 | H1(Fine) | 370 | 25 | 480-2128 | 750 |
H2(Medium Fine) | 195 | 22 | 552-1605 | ||
H3(Extra Fine) | 85 | 10 | 365-885 |
