Application Areas: Widely used in building materials, ore crushing, transportation, energy, chemical and other industries

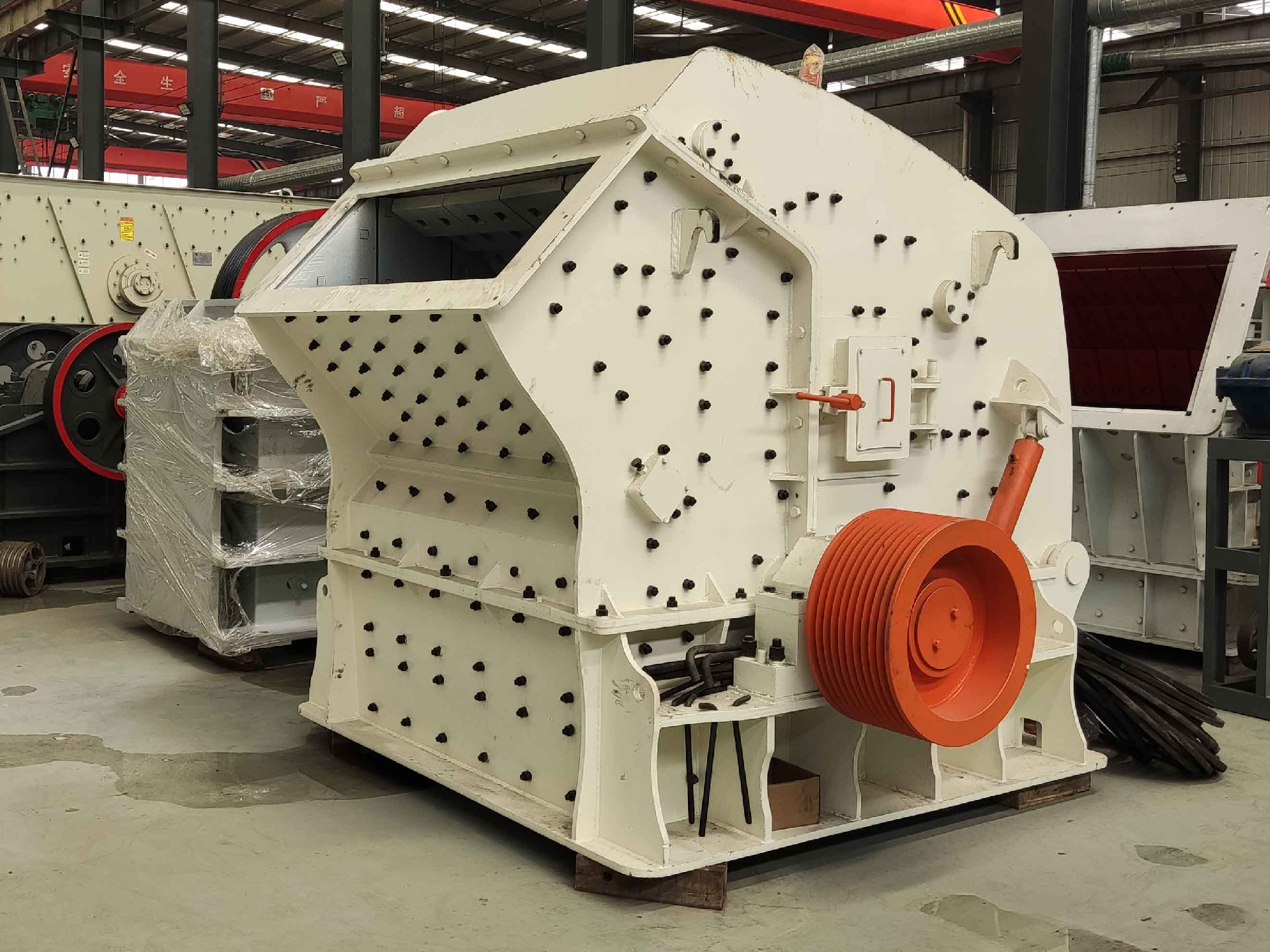

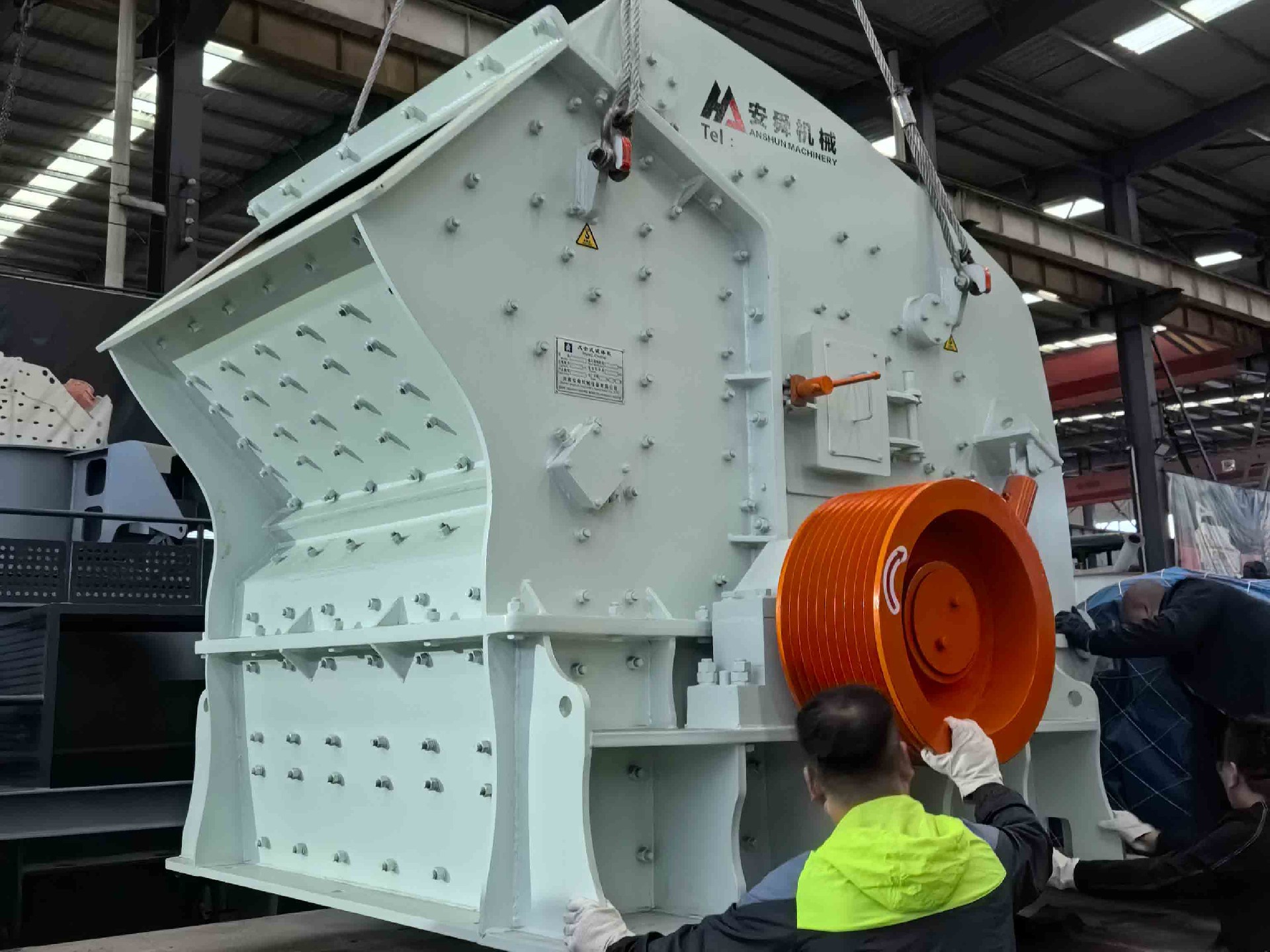

CS5X impact crusher is newly designed to meet customer needs for high profitability, low cost, energy saving, and consumption reduction. It is ideal for coarse and medium crushing in large-capacity crushing production lines. It integrates the application of high-precision rotors with large rotational inertia, multi-functional fully hydraulic operating systems, involute crushing chambers, and other new scientific research results. It is comprehensively cost-effective and helps customers obtain reliable profitability.
1. By adjusting the installation position of the reaction frame, the conversion of coarse crushing and medium and fine crushing can be realized;
2. The feeding inlet is larger. It can be used as a primary crusher when coarse crushing is needed, and the maximum feeding size be up to 1300mm;
3. When processing construction waste, it can effectively prevent the bar from winding;
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

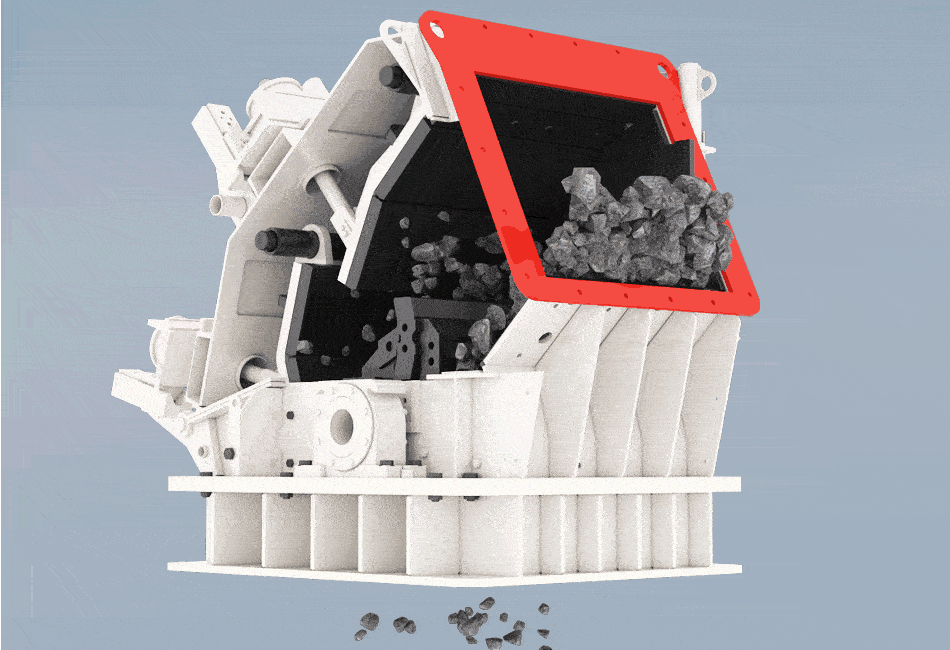

CS5X impact crusher uses impact energy to crush materials. When the machine works, the motor drives the rotor to rotate at a high speed. After the materials enter the rotor, they impact and break with the plate hammer on the rotor, then bounce back from the reaction lining plate to the plate hammer action area for re-breaking. This process is repeated. The materials enter the first, second and third reaction chambers from large to small for repeated breaking until the materials are broken to the required particle size and are discharged from the discharge port. Adjusting the clearance between the reaction frame and the rotor can change the particle size and shape of the material.
Model | Specification | Feed Inlet Size(mm) | Feeding Size(mm) | Processing Capacity(t/h) | Motor Power(kW) | Overall Dimension LxW×H(mm) |
CS5X1315 | 1300×1500 | 1540×930 | ≤600 | 250-350 | 250-315 | 2880×2755×2560 |
CS5X1415 | 1400×1500 | 1540×1320 | ≤700 | 350-550 | 250-315 | 2995×2790×3090 |
CS5X1520 | 1500×2000 | 2040×520 | ≤900 | 400-600 | 400-500 | 3390×3475×2790 |
CS5X1620 | 1600×2000 | 2040×1630 | ≤1100 | 500-900 | 400-500 | 3485×3605×3720 |
CS5X2023 | 2000×2300 | 2400×1920 | ≤1300 | 1200-2000 | 1000-1200 | 4890×4330×4765 |
