Application Areas: Sand and stone field, concrete sand making, dry powder mortar, machine sand, power plant desulfurization, quartz sand, etc

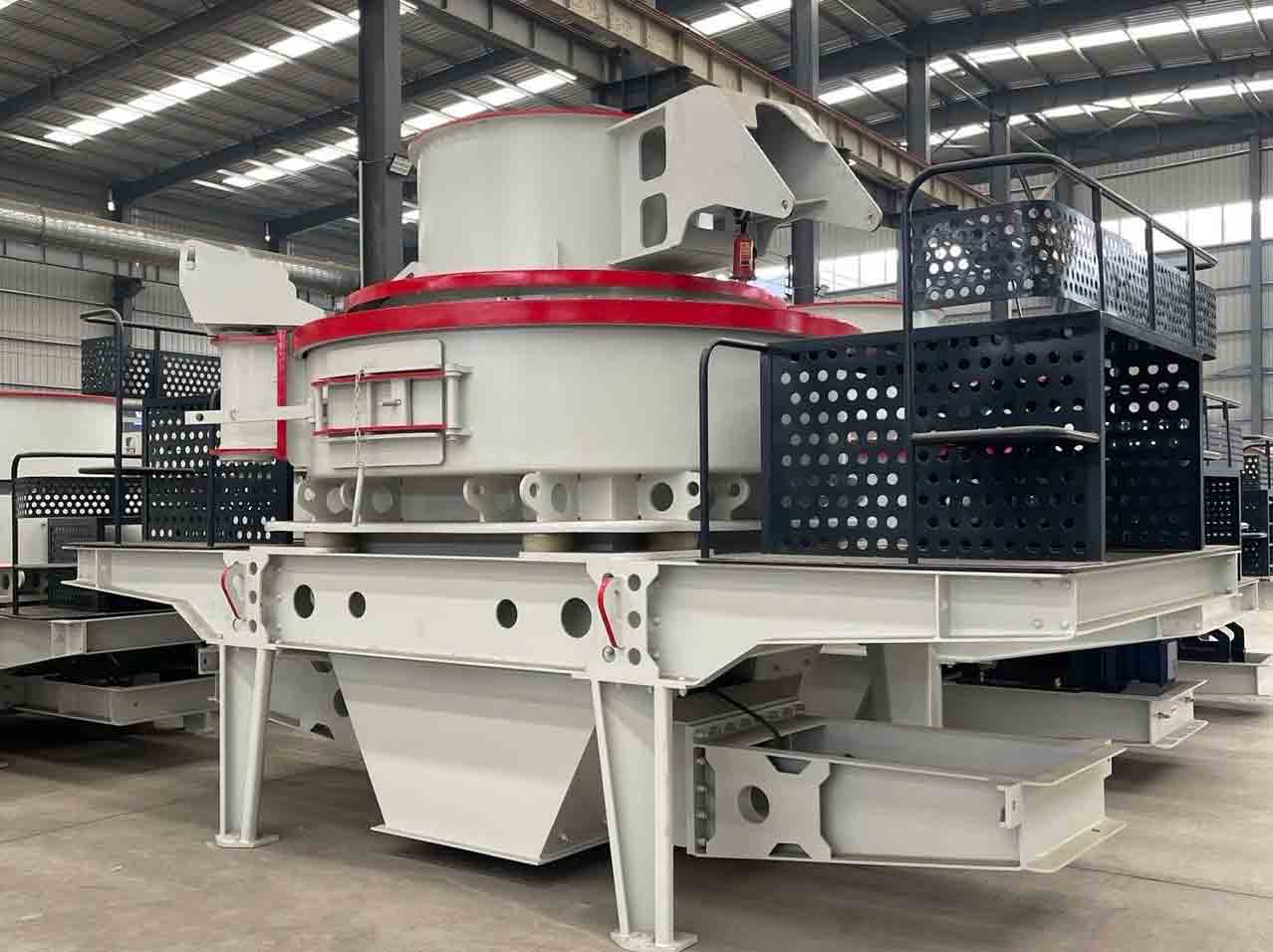

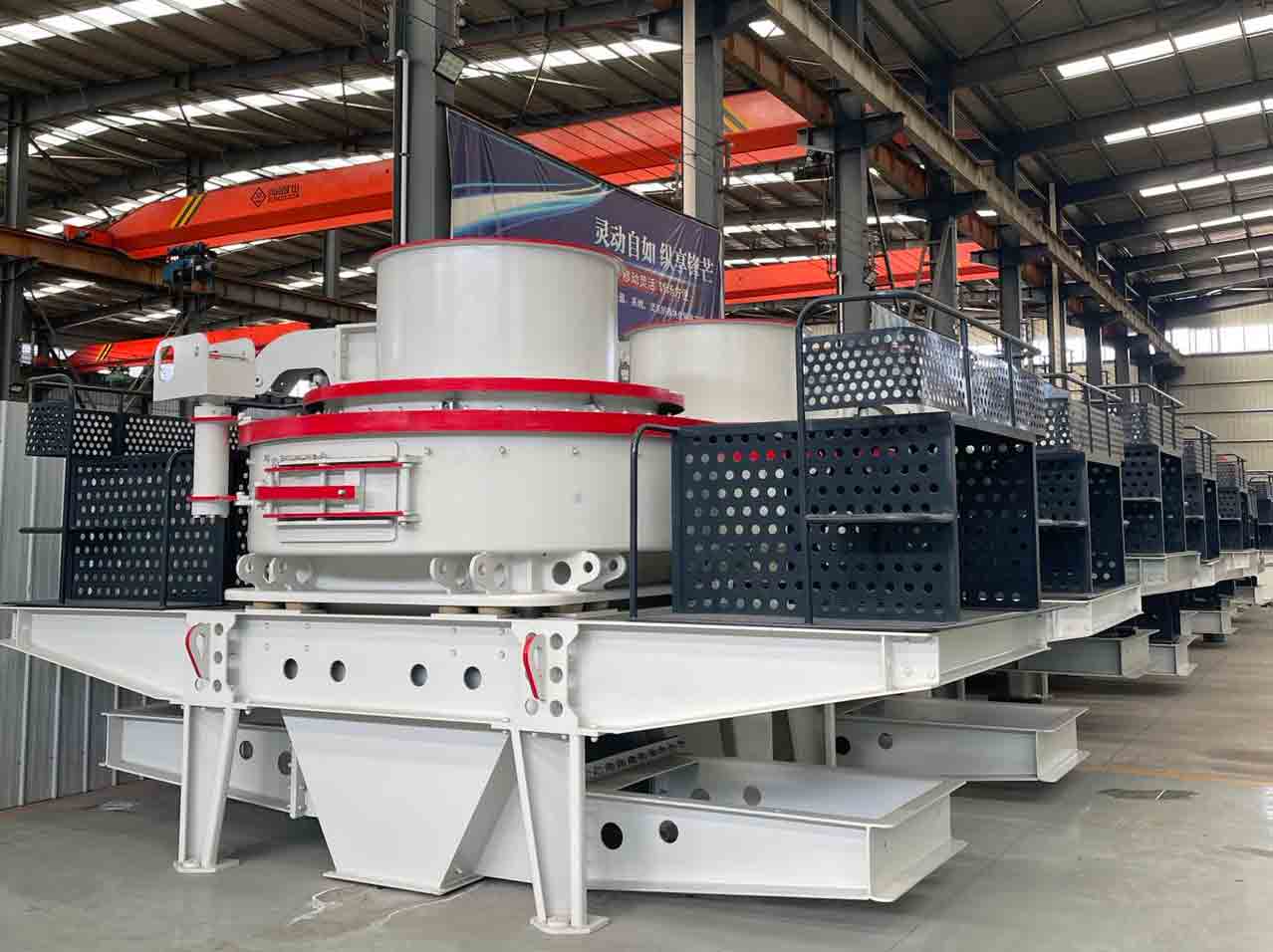

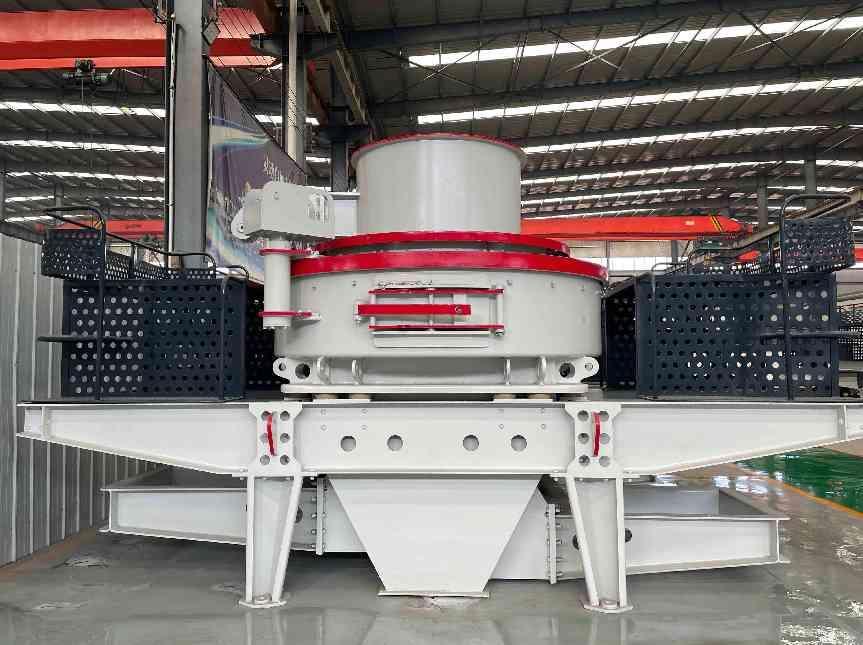

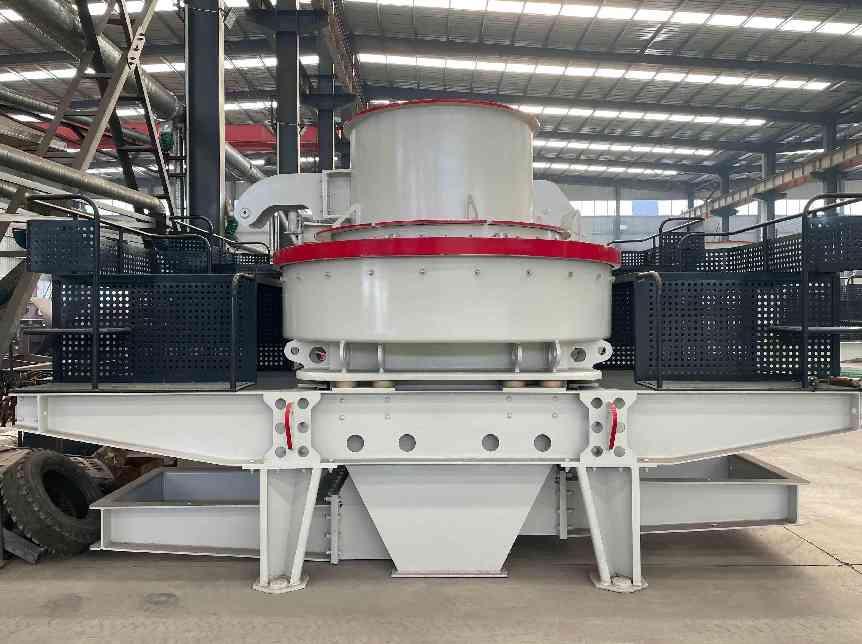

5X Sand Making Machine is our company's latest-generation product, with the latest technology from Germany, and it has several independent patent rights. It is a model of the perfect combination of professional crushing technology and mechanical manufacturing and a full embodiment of new technologies and new processes. It can not only provide the highest quality sand and gravel aggregate for highways, high-speed railways, high-rise buildings, municipal projects, hydropower dam construction, port terminals, concrete mixing stations, etc., but has also become the undisputed core of the machine-made sand industry and stone shaping fields. Equipment has increasingly become mainstream in metal ore crushing, quartz sand production, steel slag processing, and other fields. 5X Sand Making Machine is a new high-efficiency crushing machine recognized worldwide.
It has the following unique features and advantages.
1. After the optimized design of the deep cavity rotor, the material throughput is increased by about 30%.
2. After the partially worn peripheral guard plate, it can be turned up and down to improve material utilization and extend the service life by more than 48%. The wear-resistant block combined design only needs to replace the worn parts, which can reduce the use cost by more than 30%.
3. The core wear-resistant materials are highly wear-resistant and high-temperature materials used in important industries in the United States.
4. Use diamond-shaped impact blocks to avoid damage to the vertical plate after material impact and wear.
5. The optimal launch port and smoother curved design inside reduce the flow resistance of materials and greatly improve the material passing capacity.
6. Dual-purpose bulk material tray is easy to operate and can easily switch between two feeding methods.
7. The special sealing structure at the lower end of the spindle ensures no oil leakage without an oil seal.
8. The hydraulic cover opening device using originally imported accessories can move the upper cover conveniently and quickly, saving labor and effort when replacing and repairing internal parts of the machine body.
9. Choose motors with high protection levels. This type of motor has the characteristics of high efficiency and low noise. It must comply with International Electrotechnical Commission (IEC) standards, have Class F insulation, and have an IP54/55 protection level.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

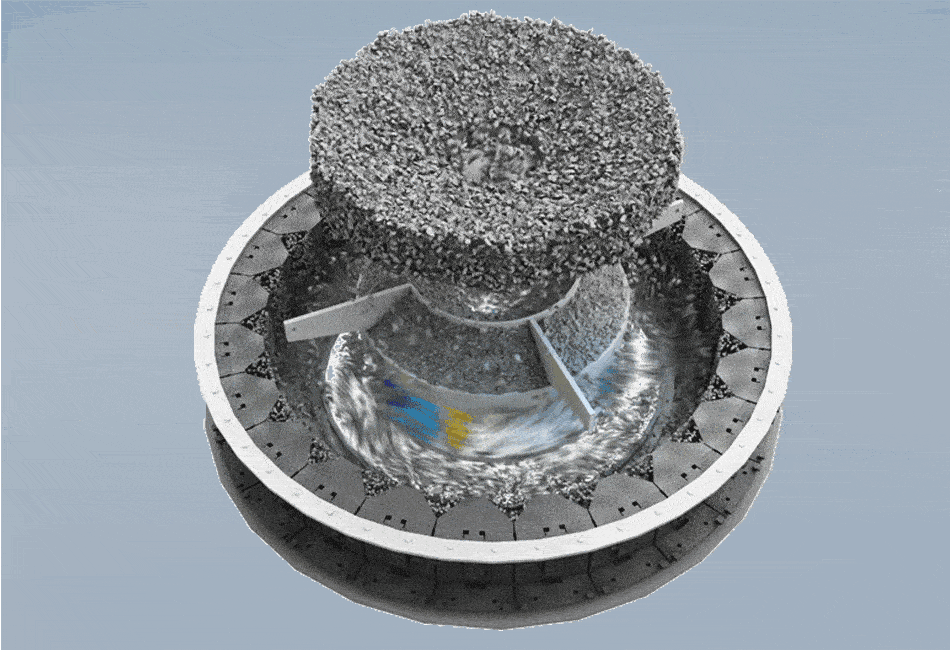

When entering the impeller, the raw material can be crushed directly by hitting the impact plate after it is accelerated and thrown out. The raw material can also be divided into two parts by material-dividing plate. One falls from all around. The other enters into the impeller and is accelerated, thrown out, and collides with the falling material and hits and rebounds with the impact plate. The circulation hits repeats. As the crushing moves forward, small particle materials will gradually form a material bed around the impact plate, which can improve the crushing effect and protect the machine. The desired artificial sand comes downwards through the outlet finally.
Model | 5X7615 | 5X8522 | 5X9532 | 5X1145 | |
Capacity(t/h) | Feed at Center & Sides | 150~280 | 240~380 | 350~540 | 500~640 |
Center Feeding | 70~140 | 120~200 | 180~280 | 250~640 | |
Best Feed Size(mm) | Soft Material | 35 | 40 | 45 | 50 |
Hard Material | 30 | 35 | 40 | 45 | |
Rotating Speed(t/min) | 1710~1900 | 1530~1700 | 4280-1550 | 1200~1390 | |
Motor Power(Kw) | 2×75 | 2×110 | 2×160 | 2x220 | |
Dimension(L×WxH)(mm) | 4100×2330×2300 | 4100×2500×2700 | 4560×2600×2900 | 5000×2790×3320 | |
Power Source | 380v,50Hz | ||||
Thin Oil Lubrication Station
| Oil Pump Motor Power | 0.75kw | |||
Security Protection | Dual oil pump complementary oil supply; Automatic shutdown without oil flow; Air cooling; Winter motor heating starts | ||||
Oil Tank Heating Power | 2KW | ||||
LxWxH(mm) | 820×520×1270 | ||||
Note: Production capacity is measured based on medium-hardness limestone. At the same time, it is also affected by factors such as particle size, moisture content, and material properties. | |||||
Oil Tank Capacity(L) | Rated Pressure(Mpa) | Flow(L/min) | Power(kW) | Voltage Electrical Heating(v) | Media |
240 | 0.63 | 8 | 0.31 | 220 | Bearing Oil 01132-46# |
