ANSHUN MACHINERY knows what you expect from a mining project, and we are making it happen with unrivaled products and services.
Leave Message
Application Areas: Mining, building materials, infrastructure construction and other industries

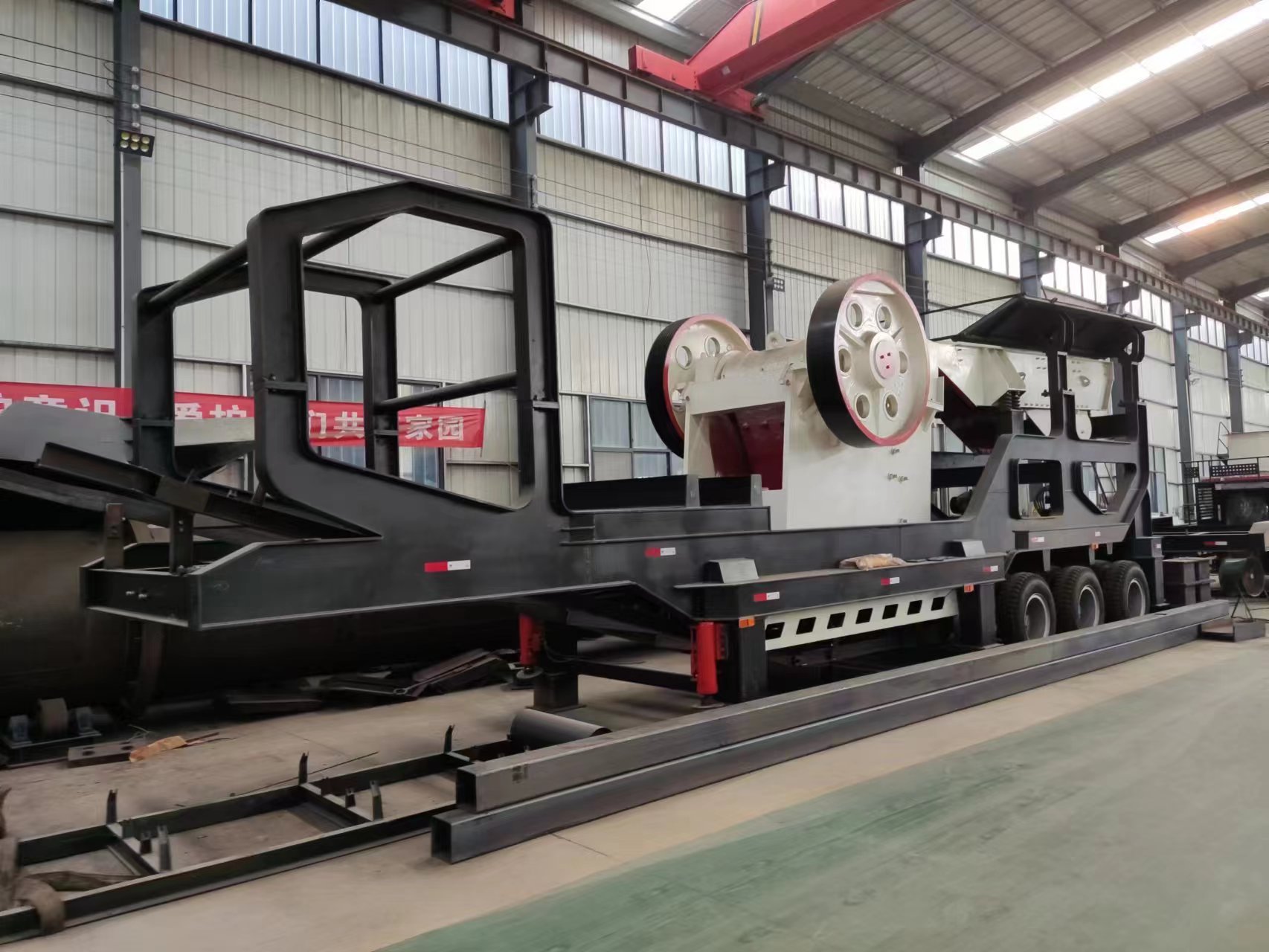

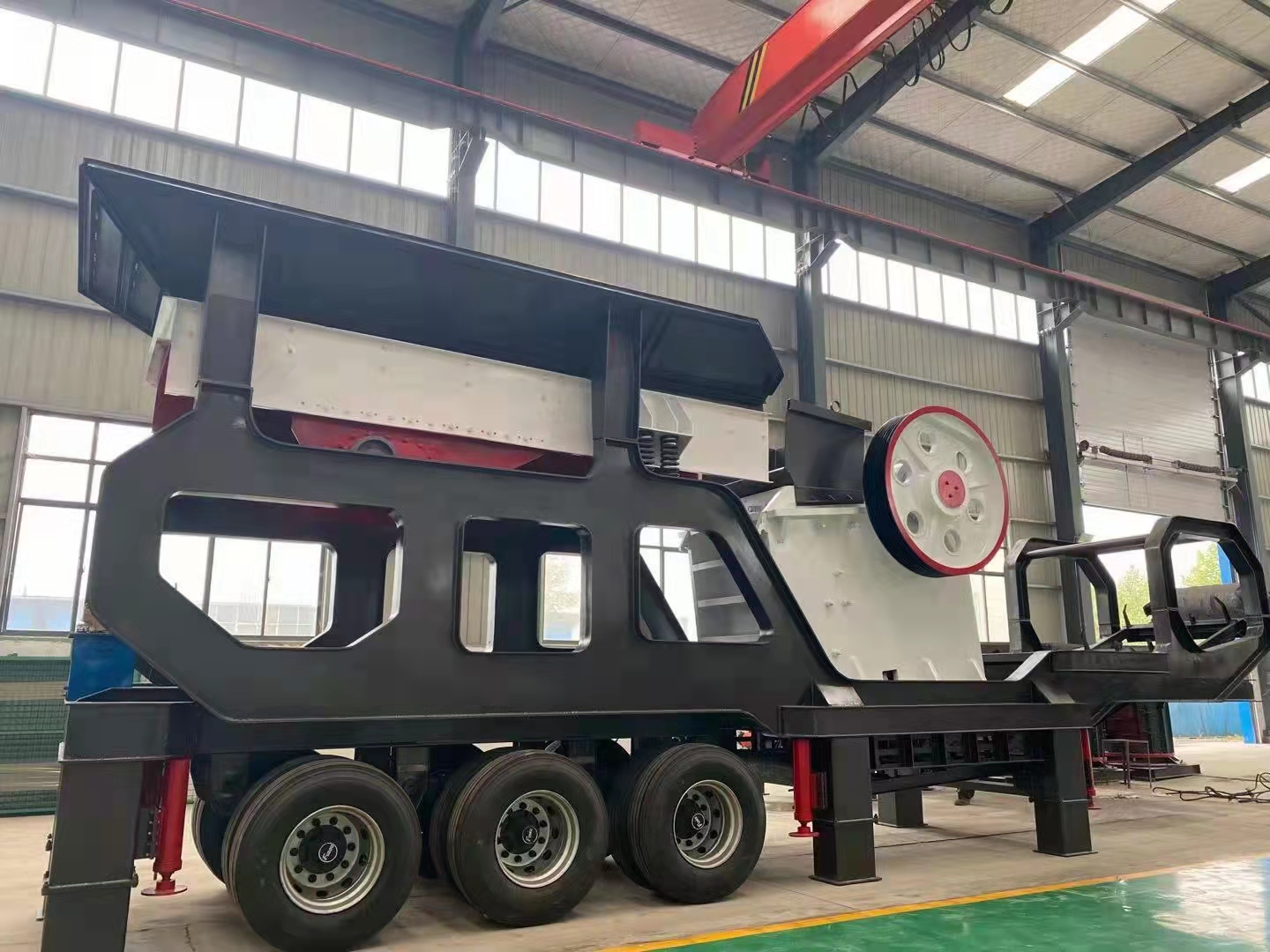

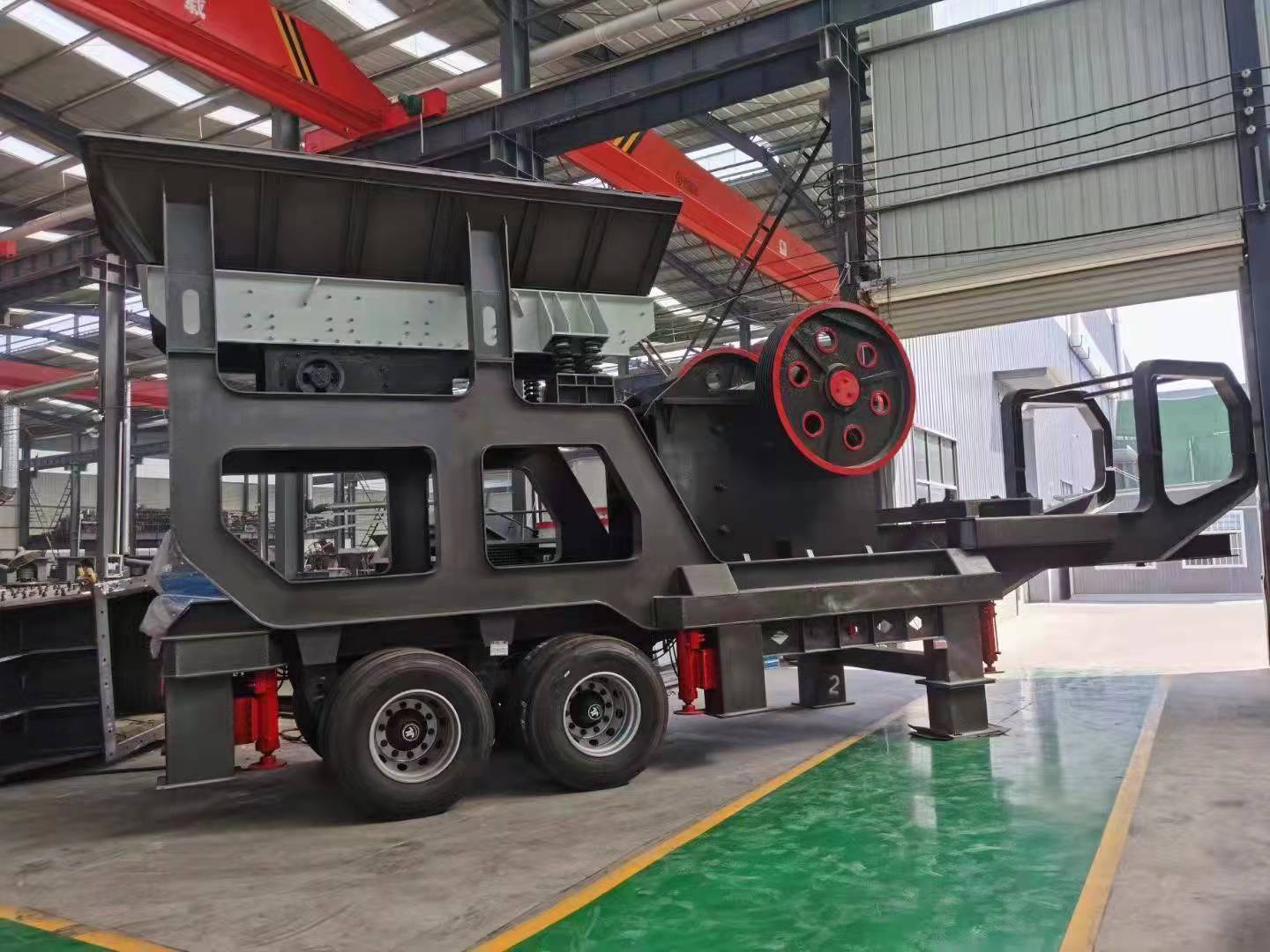

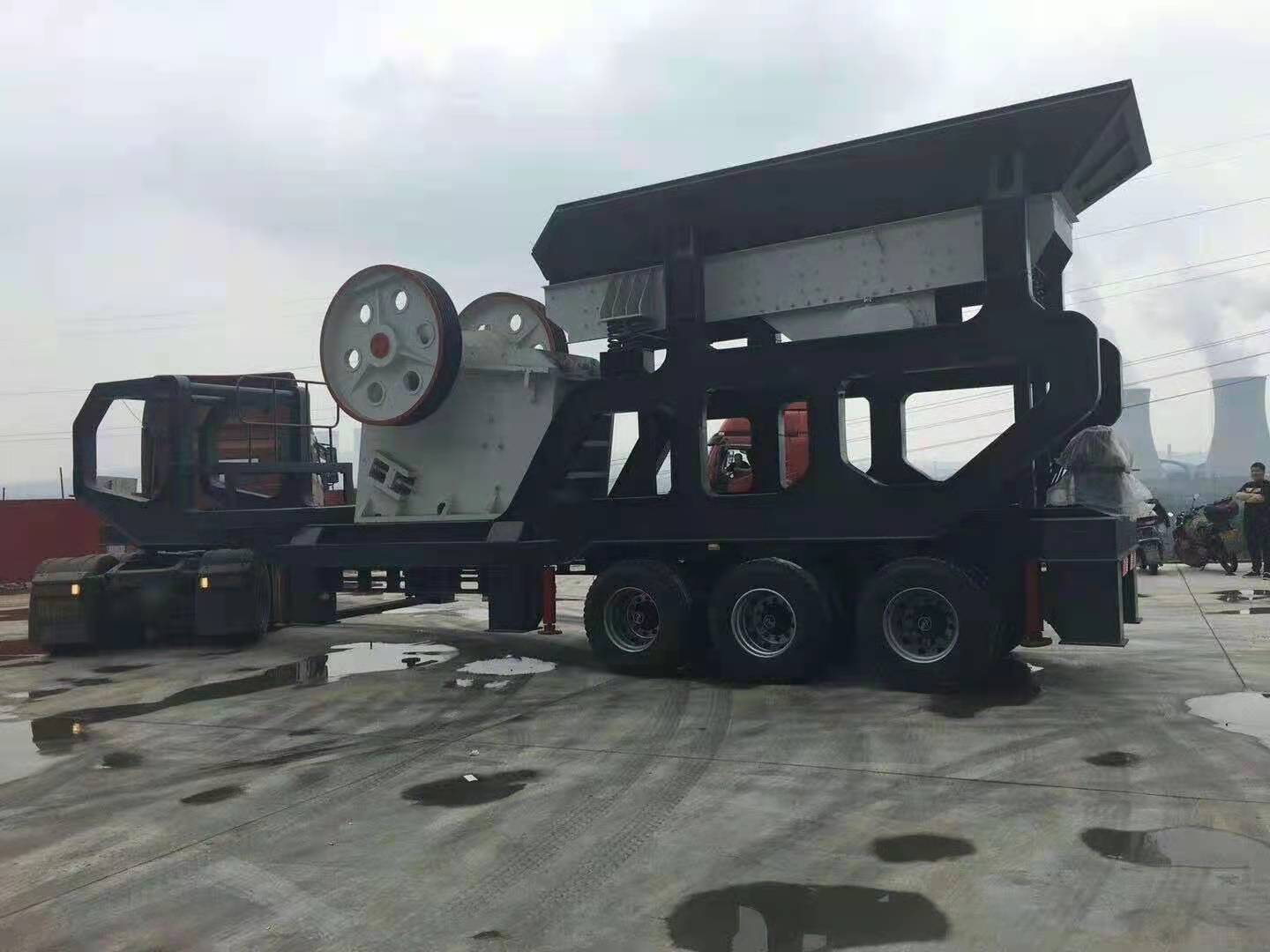

Mobile jaw crusher plant is equipped with a PE jaw crusher. It is not only mature in technology and easy to operate and maintain but also has good adaptability, safety, and reliability for transportation volume, material particle size, and abrasiveness.
Mobile jaw crushers can be equipped with PE jaw crusher series, PEX euro jaw crusher series, and 6CX European jaw crushers with high crushing efficiency, versatility, excellent crushing product quality, and a light and reasonable structural design. Reliable and stable quality assurance has established a good reputation for new and old customers at home and abroad. It is not only mature in technology and easy to operate and maintain but also has good adaptability, safety, and reliability for transportation volume, material particle size, and abrasiveness. The integrated unit configuration is convenient and reasonable for installation and maintenance. The configured unit has high durability and higher working time.
The high-performance jaw crusher, feeder, and vibrating screen form an integrated mobile crushing station that is easy to move and highly efficient.
The steering traction shaft can be directly moved to the site for operation, saving material transportation costs and making it convenient to put into production.

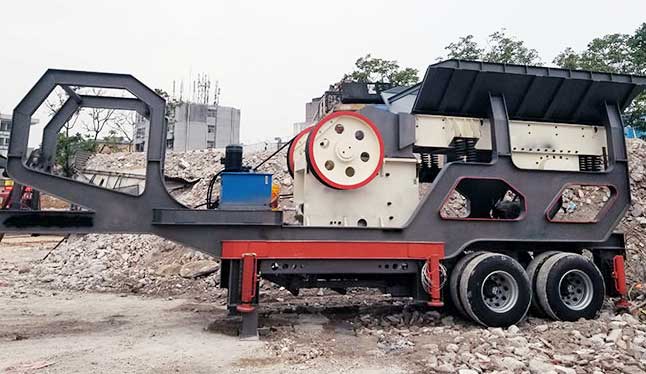

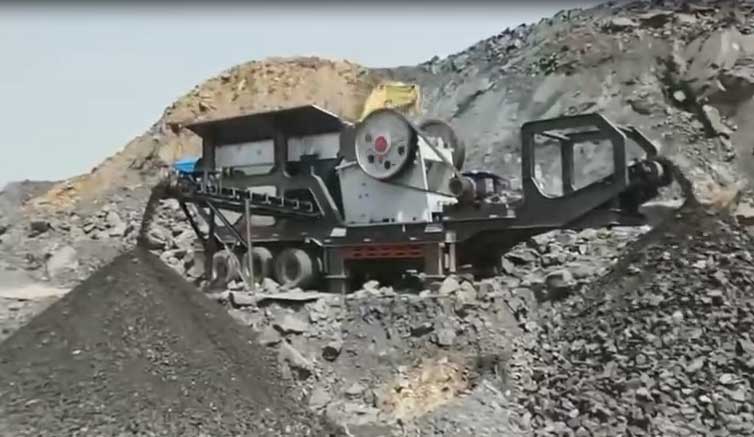

The mobile jaw crusher plant is a good helper for the coarse crushing of stones, which can be used for road construction, construction, waste recycling projects, etc.
The mobile jaw crusher plant can be configured with many models, with strong crushing capacity and high efficiency. It is a representative of vehicle-mounted mobile crushing equipment.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.
The working principle of the Mobile Jaw Crusher is that the material is evenly transported to the crusher through the feeder. After the jaw crusher performs preliminary crushing, it forms a closed-circuit system through the circular vibrating screen to achieve cyclic crushing of the material. The finished material is output by the conveyor for continuous crushing. The Wheeled Jaw Crusher Plants can remove the circular vibrating screen according to the actual production needs to achieve direct preliminary crushing of the material. It is convenient and flexible to use with other crushing equipment.
Mobile Jaw Crusher Plant Technical Parameters | ||||
Standard Model | Corollary Equipment | Adjustable Range of Discharge Opening (mm) | Capacity (t/h) | Overall Dimension (mm) |
SC69L | ZSW3896+PE69 | 60-125 | 100-180 | 11814x2470x4080 |
SC96L | ZSW3896+C96 | 60-175 | 140-245 | 11700x2470x4080 |
SC106L | ZSW1149+C106 | 70-200 | 150-325 | 13000x2500x4230 |
SC116L | ZSW1349+C116 | 70-200 | 205-345 | 15500x2600x4800 |
SC110L | ZSW1349+C110 | 70-200 | 250-395 | 15000x2510x4600 |
