ANSHUN MACHINERY knows what you expect from a mining project, and we are making it happen with unrivaled products and services.
Leave Message
Application Areas: Widely used in metallurgy, coal mining, mineral processing, building materials, chemical industry, abrasives and other industries, has become an essential equipment in crushing and screening joint operations.

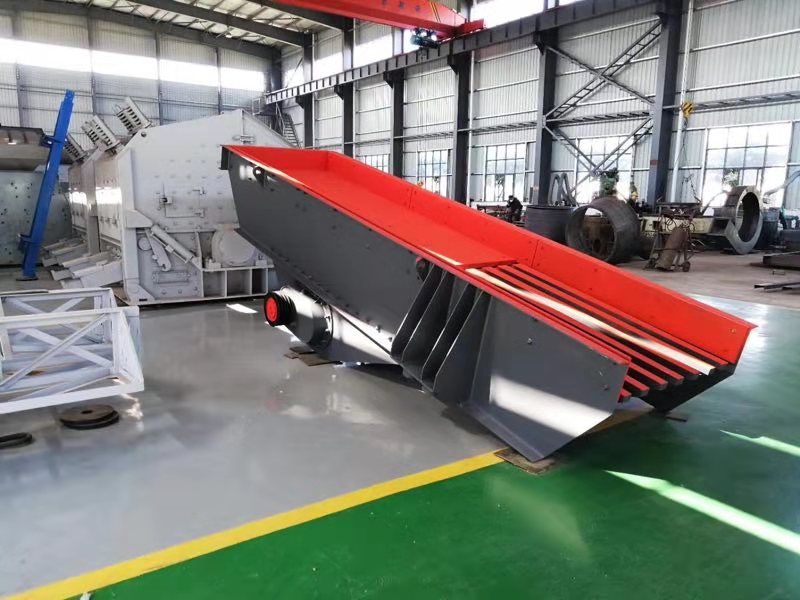

The ZSW series vibrating feeder can evenly and continuously feed block and granular materials from the silo to the receiving device. In the sand and gravel production line, the crusher can be fed continuously and evenly to avoid clogging of the crusher's receiving port.
1. GZD series feeder can effectively improve the speed of the eccentric shaft; the castor bar adopts the structure of a two-stage ladder and lower installation angle, which improves the feeding capacity and feeding efficiency;
2. Using Y series motor and frequency conversion controller, easy to adjust, accurate speed regulation.
3. The main stress parts of the feeding box are thickened; the bottom and side guard plates are made of steel plates with higher toughness and strength, which improves the wear resistance of the tank body and reduces the maintenance amount;

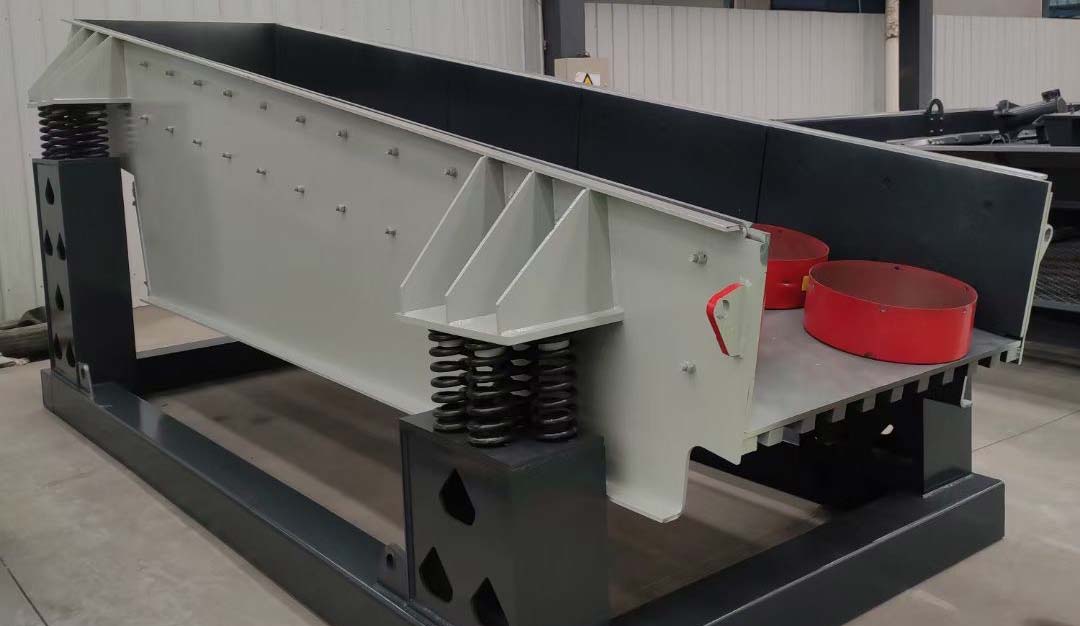

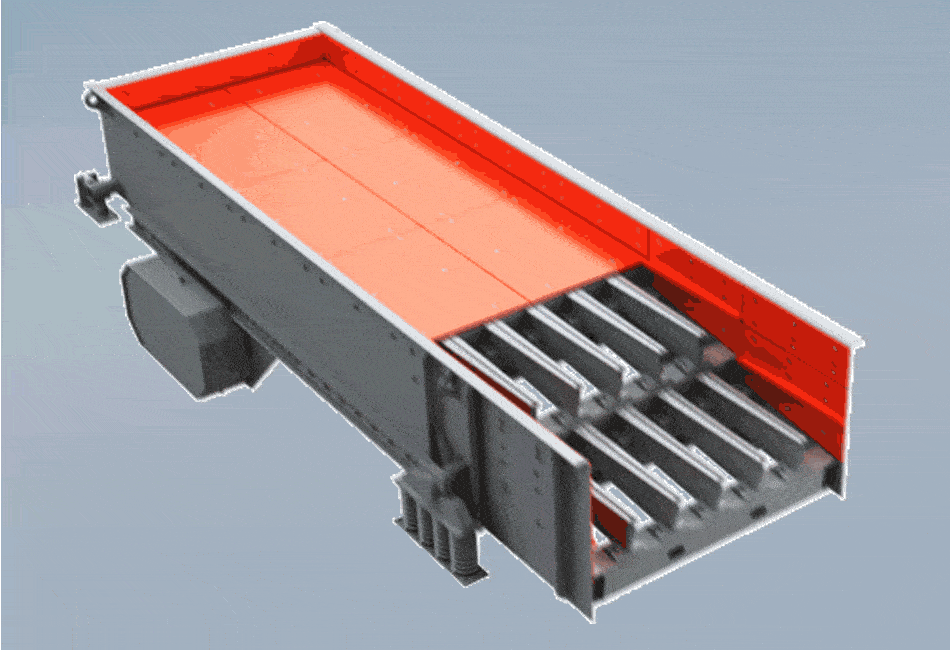

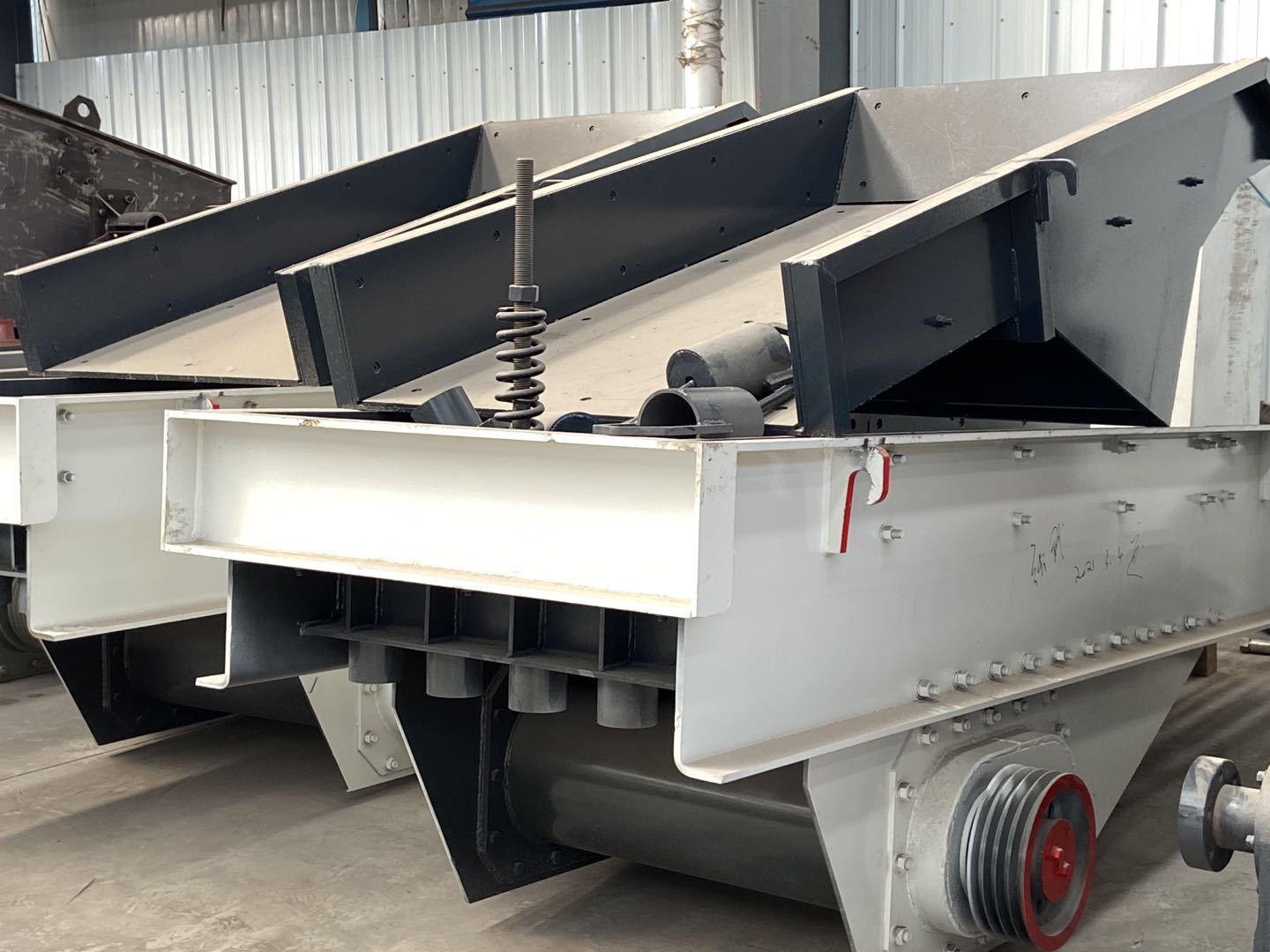

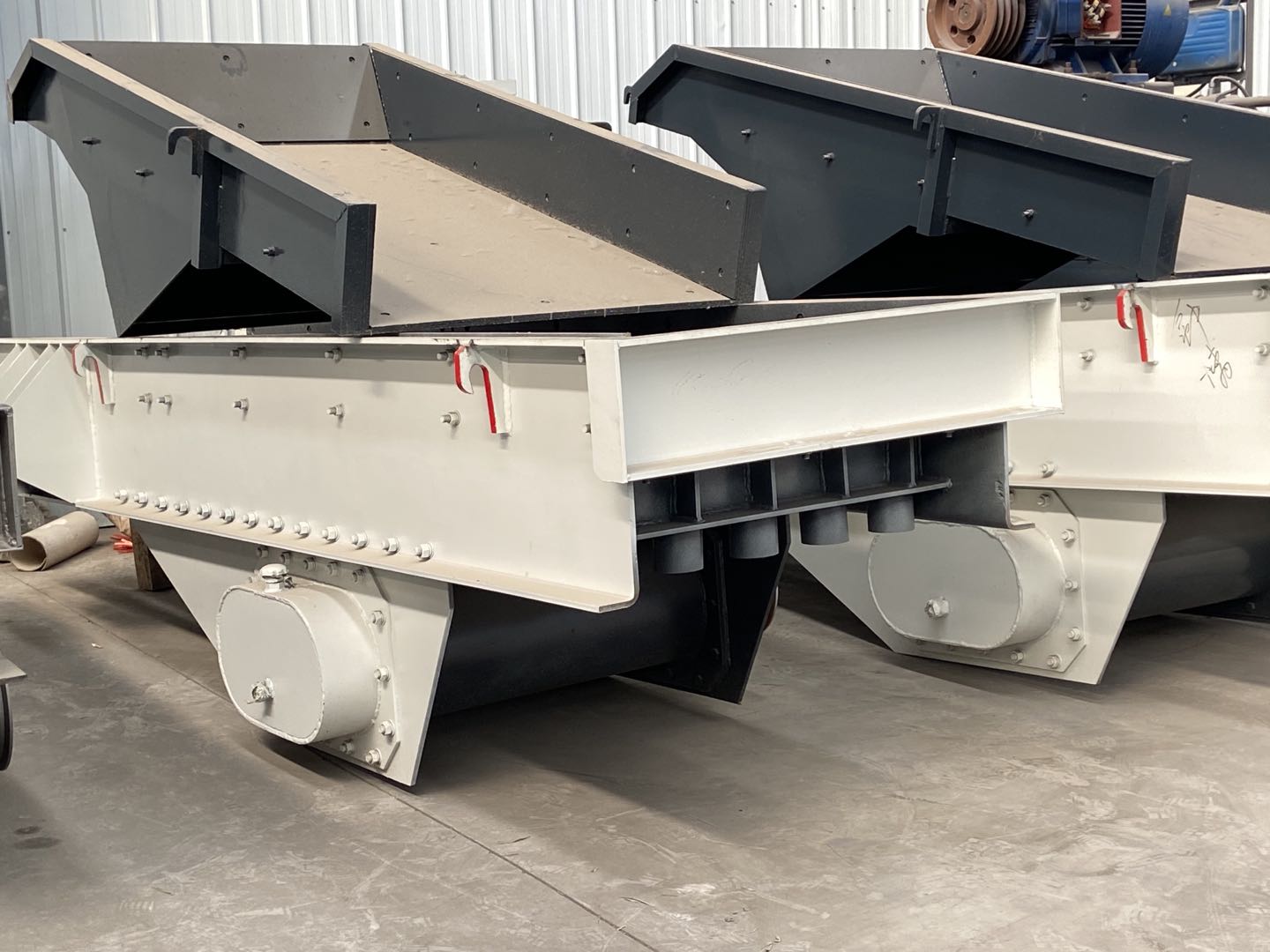

4. Simple and compact structure, small size, lightweight, easy to install and debug. The vibration feeder is composed of a feeding trough, vibration exciter, spring support, transmission device, etc. The motor drives the driving shaft through the V-belt, and then the gears on the driving shaft mesh with the passive shaft to rotate. The active and passive shafts rotate in reverse at the same time, which makes the tank vibrate and makes the material flow continuously to achieve the purpose of conveying materials.
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.

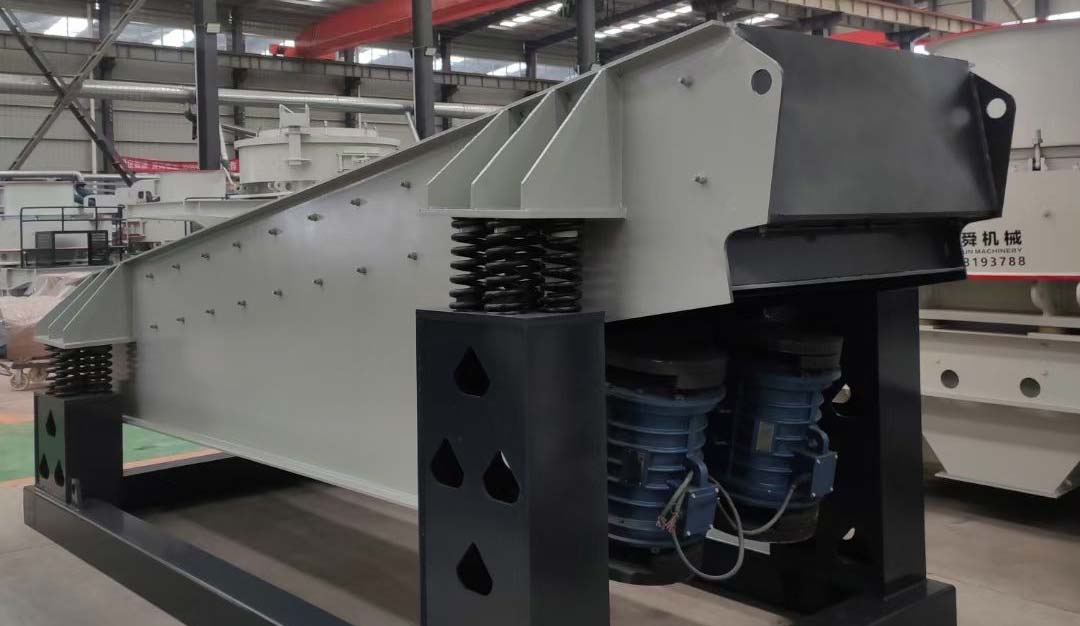

This machine uses the rotation of the eccentric block in the vibrator to generate centrifugal force, causing the movable parts such as the screen box and vibrator to make forced continuous circular or approximately circular movements. The materials are continuously thrown on the inclined screen surface along with the screen box, and the materials are continuously and evenly sent to the material receiving port.
Model | Size of Funnel(mm) | Processing Capacity(t/h) | Power (kw) | Installation Slope(°) | Overall Dimensions(mm) |
ZSW850×3000 | 850×3000 | 60-100 | 11 | 0-5 | 3110×1800×1600 |
ZSW960×3800 | 960×3800 | 100-200 | 15 | 0-5 | 3850×1950×1630 |
ZSW1100×4200 | 1100×4200 | 200-300 | 15 | 0-5 | 4400×2050×1660 |
ZSW1100×4900 | 1100×4900 | 250-350 | 18.5 | 0-5 | 5200×2050×1700 |
ZSW1300×6000 | 1300×6000 | 350-800 | 22 | 0-5 | 6080×2150×1525 |
ZSW1500×6000 | 1500×6000 | 500-1000 | 30 | 0-5 | 6080×2350×1535 |
ZSW1800×6000 | 1800×6000 | 600-1200 | 37 | 0-5 | 6080×2660×1600 |
